viking settlement haithabu, schleswig
| Terrain modell | |
| Designed exhibit | |
On the basis of data processing and programming of appropriate positioning aids for the model builder by QUOMODO.de the design of the surface could be carried out by the model maker.
Raised objects such as houses, walls and port facilities were applied individually. Sunken structures such as roads, moats and a watercourse were milled into the CNC-machined terrain model. In coordination with the responsible archaeologists solutions had been found for architectural details, which proved only to be critical when the actual construction ermerged.
above: control projection and detail view

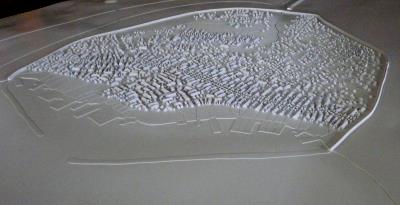

above left: overview total model
below left: overview with fitting head-on

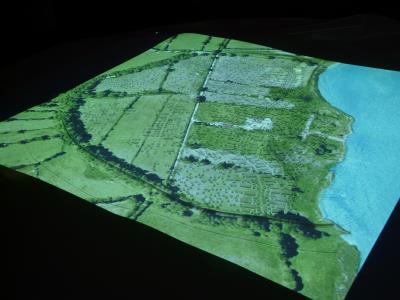

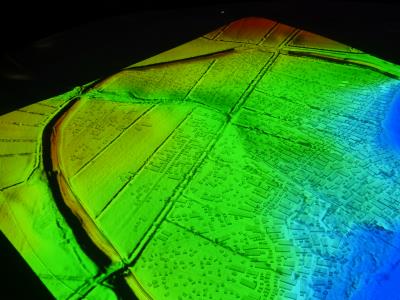

projection onto the the modell of
the area morphology and an
areal photograph of the location
